AUTO CASE FORMER CF-101
- HOME
- AUTO CASE FORMER CF-101
The most sold model of our automatic case former.
Its performance is proven in various business field from pharmaceutical to food production.
High functionality and space saving design

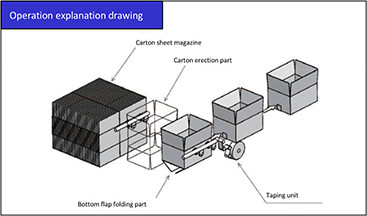

Carton sheet extraction section is driven by servo motor and it improve precision of carton unfolding. A swing taping unit simplifies tape exchange process.
Easy size change
Digital indicator makes it possible to simplify size change and to ensure reliable reproductivity. Carton loading work becomes less fatigue by locating carton magazine at lower position.
Specification
| Model | CF-101 |
|---|---|
| Capacity | 13cpm(MAX) (MAX20cpm for CF-101H) |
| Electric Power | 3 Phase 200V 400W |
| Compressed Air | 0.49MPa 200Nℓ/min |
| Carton Type | Carton A type left open type |
| Carton magazine | Approx. 80 pcs. accommodation (A/F type carton) |
| Carton unfolding part | Vacuum type |
| Sealing part | Taping unit Kraft or OPP tape |
| Carton transport part | Side belt conveyor |
| Size change | Steering wheel adjustment (with digital indicator) |
| Safety Cover | PET full guard cover (with safety switch) |

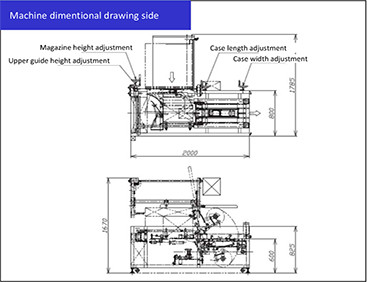

| Machine Size | L=2,000mm W=1,785mm H=1,670mm |
| Pass Line | 600mm |
| Machine Weight | Approx. 450kg |
Options
□Large capacity sheet stock magazine
□Hot melt sealing type
□Adhesive tape with water application
□Special carton size
□Carton right open type
□Various stamping devices
□Others
