TOP LOADING CASER YMC-502AX
- HOME
- TOP LOADING CASER YMC-502AX

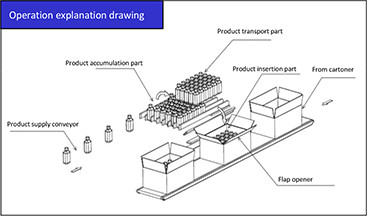

X-Z 2 axial robot demonstrates loading process with more stable and reliable movement.
Simple structure improves usefulness and maintainability greatly.
Adjustable to various work with dedicated attachment.
Multifunctionality
A robot hand adjusted to products ensures more reliable handling.
High performance
Case flap opener ensures packing of various kinds of products.
Easy size change
Size change is simplified by digital indicator and one-touch parts change.
Specification
| Model | YMC-502AX |
|---|---|
| Capacity | 15cpm |
| Electric Power | 3 Phase 200V 5kW |
| Compressed Air | 0.49MPa 200Nℓ/min |
| Carton Type | Carton A type (A/F, B/F) |
| flap opener for 4 directions | Driven by air cylinder |
| Product transport part | Belt conveyor |
| Case Conveyance Part | Belt conveyor |
| Driving Unit | X-Z 2 axis AC servo motor |
| Operation Panel | Touch panel |
| Size Change | Steering wheel adjustment and slide adjustment (with digital indicator) |
| Safety Cover | PET full guard cover (with safety switch) |

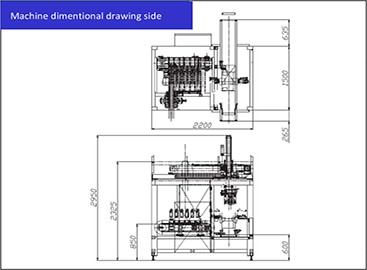

| Machine Size | L=1,500mm W=2,200mm H=2,950mm |
| Pass Line | 600 mm |
| Machine Weight | Approx. 1,500kg |
Options
□Ejector
□Special carton size
□Various stamping devices
□Higher capacity
□X-Y-Z 3 axis
□Multi-handle
□Others
