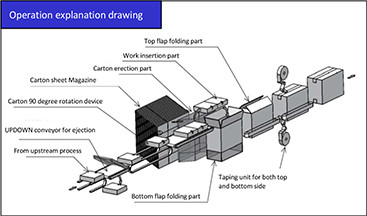

A series of processes from carton forming, accumulation and loading to sealing is performed by this one top loading set up caser.
Carton former, sealer and caser which we have great reputation for are integrated into one machine. Compact design is flexible to various kinds of layout.
High functionality
Main drive with servo motor and optimal control ensure more positive movement.
Multifunctionality
Production system with higher certainty can be built by being flexible to various options and setting inspection system etc.
※Ejection conveyor is available as option.
Specification
| Model | YMS-430T |
|---|---|
| Capacity | 15cpm |
| Electric Power | 3 Phase 200V 6kW |
| Compressed Air | 0.49MPa 280Nℓ/min |
| Carton Type | Carton A type (A/F, B/F) |
| flap opener for 4 directions | Driven by air cylinder |
| Product transport part | Belt conveyor |
| Case Conveyance Part | Roller conveyor |
| Driving Unit | X-Z 2 axis AC servo motor |
| Operation Panel | Touch panel |
| Carton Magazine | approx. 60 pcs. accommodation (A/F type carton) |
| Carton closing part | Kraft or OPP tape |
| Safety Cover | PET full guard cover (with safety switch) |

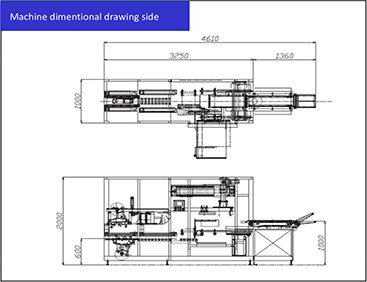

| Machine Size | L=4,610mm W=1,000mm H=2,000mm |
| Pass Line | 600mm |
| Machine Weight | Approx. 1,500kg |
Options
□Ejector
□Various inspection devices
□Various stamping devices
□Higher capacity
□Weight identifying device
□Other
