WRAP-AROUND CASER YMW-320BS
- HOME
- WRAP-AROUND CASER YMW-320BS
Cleaning, maintainability and sanitation improved with the under open frame structure and the dust pan for paper dust.
A carton extraction part adopts servo motor drive to perform more positive carton supply and makes it possible to serve for both a wrap-round case and a tray case.
High functionality
A carton extraction part adopts a servo motor that realizes stable carton extraction.
Simple design
A carton conveyance part is the clamp and carry system which adopted the servo motor and realized more positive conveyance, simple design and noise reduction.
Applicable to wet working environment
Stainless body makes it suitable to wet work condition.
Specification
| Model | YMW-320BS |
|---|---|
| Capacity | 20cpm |
| Electric Power | 3 Phase 200V 8kW |
| Compressed Air | 0.49MPa 450Nℓ/min |
| Carton Type | Blank carton for wrap-around type (A/F, B/F carton) |
| Carton Extraction Part | Crank structure driven by servo motor |
| Carton Magazine | Approx. 150 pcs. accommodation (In case of B/F carton) |
| Case Conveyance Part | Clamp and carry |
| Carton Closing Method | Hot melt |
| Driving Unit | AC Servo motor |
| AC Servo motor | Touch panel |
| Size Change | Steering wheel adjustment and slide adjustment (with digital indicator) |
| Safety Cover | PET full guard cover (with safety switch) |

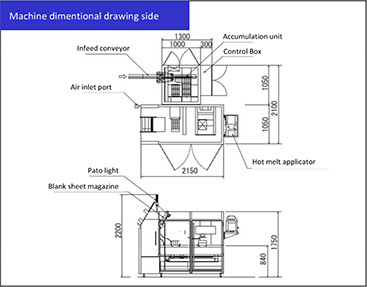

| Machine Size | L=2,150mm W=1,050mm H=1,750mm(2,200) |
| Pass Line | 840mm |
| Machine Weight | Approx. 1,800kg |
Options
□Various automatic accumulation supply devices
□Inner seam flap
□Various stamping devices
□Weight identifying device
□Special carton size
□Infeed conveyor and out feed conveyor
□Automatic sheet supply device
□Others
